Sorcery - turn-based card game engine

Two-player, terminal-based card game written in C++20 for a CS246 final project. The engine models minions, enchantments, rituals, and spells over a shared card/target hierarchy, using the Decorator, Observer, Strategy, and Factory patterns so new cards are data plus small classes instead of edits to the game loop.

role
Team of three / OOP engine design
timeline
University of Waterloo CS246, 2025
status
complete
stack
C++20, OOP design patterns, Make, g++

The problem

A turn-based card game has a deceptively hard core. Dozens of cards each change the game in different ways - stat buffs, summons, board wipes, magic generation, effects that fire on someone else's turn - but they all share one rules engine. The naive approach is a giant switch over card names that grows every time a card is added, and quickly becomes impossible to reason about.

Sorcery is a two-player, terminal-based duel in the spirit of Hearthstone. Each player has a deck, a hand, a board of up to five minions, a single ritual slot, and a graveyard. Players spend magic to play minions, enchantments, rituals, and spells, attack with their minions, and trigger abilities, racing to bring the opponent's life total to zero. The interesting CS246 problem was not the rules themselves; it was building a card-effect system where adding a card is a data file plus a small class, not a change to the game loop.

My role

This was a three-person team final project. I worked across the card-effect system: the Card/Target hierarchy, the Decorator-based enchantment layer, the Observer wiring for triggered abilities, and the loader that turns card files into concrete objects.

Most of the engineering was design-pattern work rather than gameplay tuning. The goal we set was that the game loop should stay small and stable while the set of cards grows, so the patterns had to carry the variation instead of conditionals scattered through Game and Player.

System design

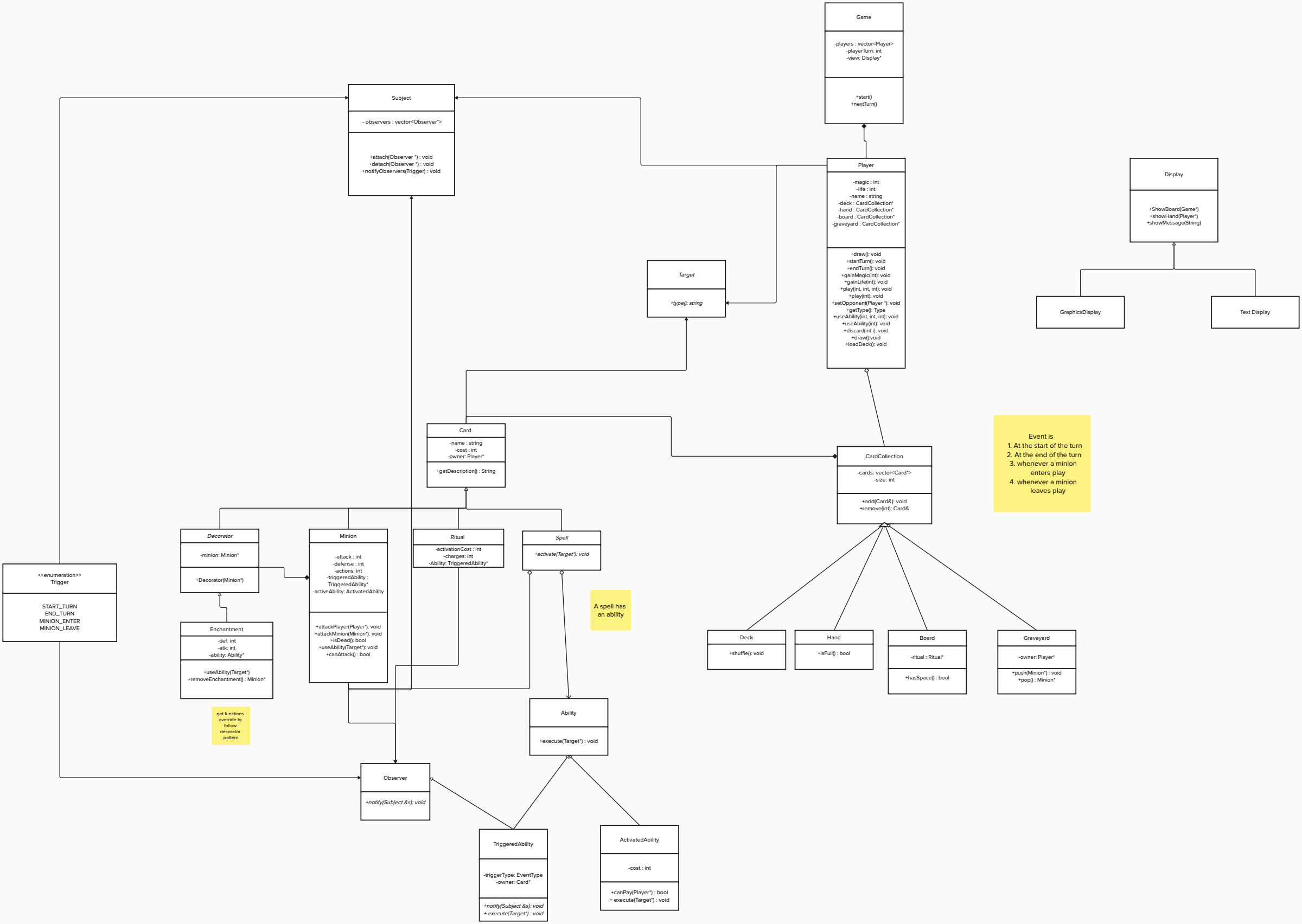

Sorcery UML class diagram showing the Card hierarchy, Decorator-based enchantments, Observer/Subject event system, the CardCollection zones, and the Ability classes

The full UML class diagram. Every card descends from a shared Card base while players and minions share a Target interface, and the four design patterns - Decorator (Enchantment), Observer (Subject/TriggeredAbility), Strategy (Ability), and a Display view hierarchy - carry the variation instead of branching inside the game loop.

Game owns two Player objects and runs turns in APNAP order (active player, then non-active player) through active and inactive pointers, broadcasting events as the turn changes. Each Player is a Subject that owns four card collections - Hand, Deck, Board, and Graveyard - and the board enforces the five-minion cap and the single ritual slot.

The model is anchored on two abstractions. Card is the base for every card type, and Target is a separate interface that both Player and Minion implement, so anything that deals damage, heals, or buffs operates on a Target* without caring whether it is a player or a minion. On top of that base, four patterns do the real work: enchantments are Decorators that wrap a minion, triggered abilities are Observers on typed events, activated and triggered abilities sit behind a single Ability base, and CardLoader is the factory that turns card files into concrete objects.

Key technical decisions

  • One Target interface for players and minions. Both implement takeDamage, gainHp, gainAttack, getHp, and isDead, so attacks, spells, and abilities resolve against a Target*. The combat and effect code never branches on "is this a player or a minion."
  • Enchantments as a Decorator chain, not minion fields. Enchantment is a Decorator that is itself a Minion and wraps the minion underneath it. getAttack, getHp, and getAbilityCost walk the wrapped minion and apply a modifier; a mult flag switches between additive buffs (Giant Strength) and multiplicative ones (Magic Fatigue). Buffs stack as a chain, and removeEnchantment peels the outer layer back off.
  • Triggered abilities as observers on typed events. A Subject keeps a map<EventType, vector<Observer*>>, so a START_TURN or MINION_LEAVE event only notifies the cards that registered for it. Triggered abilities detach themselves from the subject on destruction, which keeps observers from dangling when a minion leaves play.
  • Two ability flavours behind one base. ActivatedAbility carries a cost plus needTarget/canPay checks; TriggeredAbility is also an Observer and fires on an event. A Minion owns one unique_ptr of each, so a card can have an on-demand ability, an event-driven one, or both.
  • Data-driven cards through a loader. A .card file declares the type, cost, stats, and ability in a few lines, and a .deck file is just a list of card names. CardLoader is the single place that maps a name to its concrete Ability or Spell class, so the rest of the engine never sees a card-name string.
  • unique_ptr ownership end to end. Players own their collections, collections own cards, and minions own their abilities, so cleanup follows RAII down the tree. The Makefile builds with C++20 under -Wall -Werror=vla and -MMD auto-generated dependencies so header changes rebuild the right objects.

Results

Sorcery reached a complete, playable two-player game driven entirely from the terminal. The command set covers help, end, quit, attack (a minion or the opponent), play with optional targeting, use for activated abilities, inspect, hand, and board. Command-line flags let you set each player's deck (-deck1, -deck2), replay a scripted setup with -init, and run in deterministic -testing mode for the I/O-diff harness.

The card set is broad enough to exercise every pattern: 22 cards spanning all four types - minions (the Air, Earth, and Fire Elementals, Bone Golem, Novice Pyromancer, Potion Seller, Apprentice and Master Summoner), enchantments (Giant Strength, Enrage, Haste, Magic Fatigue, Silence), rituals (Dark Ritual, Aura of Power, Standstill), and spells (Banish, Unsummon, Recharge, Disenchant, Raise Dead, Blizzard). Behind them are 14 concrete ability and spell classes plus a scripted init/maintest test path used to check turn flow against expected output.

What I would do differently

I would replace the hardcoded name-to-class ladder in CardLoader with a registration table. Right now adding a new effect still means editing a chain of if checks in the loader; a map from a card key to a factory function would let a concrete ability register itself and keep the loader closed to modification.

I would also tighten how enchantments are applied and owned. The decorator stat math is clean, but the apply path has rough edges - Enchantment::activate reassigns a local pointer instead of wrapping the target through the board, which is a real bug - so I would route enchanting through the board's replaceMinion flow and make the ownership transfer explicit.

Finally, I would build out the stubbed graphics view and add real unit tests. The Display hierarchy splits into a TextDisplay and a GraphicsDisplay, but the -graphics window was never finished, and the project leans on scripted input/output diffs rather than tests around the event broadcast and the decorator stat-stacking. Both would make the engine safer to extend with new cards.
